有VC做一个特殊字符的选择控件

翻译|其它|编辑：郝浩|2007-08-20 09:18:31.000|阅读 1804 次

概述：

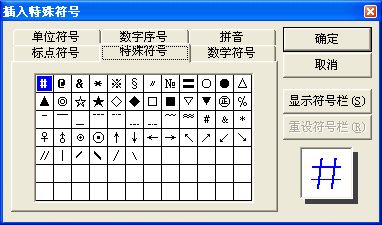

1.在 Office 里面有一个特殊字符的对话框

我们也自己做一个这个类似的控件来插入那些特殊字符.

2.说做就做,begin...........

用从 CStatic 派生一个新的类,我命名为 CStcImageFont,头文件如下.

#pragma once

// CStcImageFont

class CStcImageFont : public CStatic
...{
    DECLARE_DYNAMIC(CStcImageFont)

public:
    CStcImageFont();
    virtual ~CStcImageFont();

protected:
    DECLARE_MESSAGE_MAP()
public:
    afx_msg void OnPaint();
private:
    CDC        *m_dcFont ;
    CBitmap *m_bmFont ;
    int      m_iRowX ;
    int      m_iRowY ;
    int      m_iCurPos ;
    //垂直滚动条
    CScrollBar*        m_pScrollBar;
    CStringList     m_strList ;
    CRect           m_rClient ;
    CString  m_strSelText ;
    double     m_dXSpace ;
    double     m_dYSpace ;
public:
    void     SetRowXY(int iRowX , int iRowY ) ;
    int      GetRowX( void ) ;
    int      GetRowY( void ) ;
    void     SetCurPos(int iPos ) ;
    int      GetCurPos(void ) ;
    void     Init() ;
    CString  GetSelText(void) ;

    afx_msg int OnCreate(LPCREATESTRUCT lpCreateStruct);
    afx_msg void OnVScroll(UINT nSBCode, UINT nPos, CScrollBar* pScrollBar);
    afx_msg void OnLButtonDblClk(UINT nFlags, CPoint point);
    afx_msg UINT OnNcHitTest(CPoint point);
};

实现文件如下 CPP

// StcImageFont.cpp : 实现文件
//

#include "stdafx.h"
#include "TestImageSymbol.h"
#include "StcImageFont.h"
#include ".stcimagefont.h"

// CStcImageFont

IMPLEMENT_DYNAMIC(CStcImageFont, CStatic)
CStcImageFont::CStcImageFont()
...{
    m_iRowX = 10 ;
    m_iRowY = 10 ;
    m_pScrollBar = NULL ;
    m_dcFont = NULL ;
    m_bmFont = NULL ;
    m_iCurPos = 0 ;
    m_strSelText.Empty() ;
}

CStcImageFont::~CStcImageFont()
...{
    if ( m_pScrollBar != NULL )
    ...{
        delete m_pScrollBar ;
    }
    if ( m_dcFont != NULL )
    ...{
        delete m_dcFont ;
    }
    if ( m_bmFont!= NULL )
    ...{
        delete m_bmFont ;
    }
}
void CStcImageFont::Init()
...{
    unsigned char ss[3];
    CString  TempStr;
    for(int i = 161; i <= 254; i++)
    ...{
      for(int j = 161; j <= 254; j++)
      ...{
            ss[0] = i;
            ss[1] = j;
            ss[2] = 0;
            TempStr.Format("%s",ss) ;
            //滤掉无法显示的部分
            if( TempStr.IsEmpty() || TempStr == " " || TempStr == "  "  ) continue;
            if( i == 162 && j >= 171 && j <= 176) continue;
            if( i == 162 && j >= 227 && j <= 228) continue;
            if( i == 162 && j >= 239 && j <= 240) continue;
            if( i == 162 && j >= 253 && j <= 254) continue;
            if( i == 164 && j >= 244 && j <= 254) continue;
            if( i == 165 && j >= 247 && j <= 254) continue;
            if( i == 166 && j >= 185 && j <= 254) continue;
            if( i == 167 && j >= 194 && j <= 254) continue;
            if( i == 168 && j >= 193 && j <= 196) continue;
            if( i == 168 && j >= 234 && j <= 254) continue;
            if( i == 169 && j >= 161 && j <= 163) continue;
            if( i == 169 && j >= 240 && j <= 254) continue;
            if( i > 169 && i < 176 ) continue;
            if( i >= 248 ) continue;
            m_strList.AddTail(TempStr)  ;
        }
    }
    if(m_pScrollBar==NULL)
    ...{
        m_pScrollBar=new CScrollBar();
    }
    RECT rc;
    GetClientRect(&rc);
    m_rClient.CopyRect(&rc) ;
    rc.left=rc.right-18;
    m_pScrollBar->Create(SBS_VERT|WS_VISIBLE|WS_CHILD,rc,this,1);
    SCROLLINFO si;
    si.cbSize=sizeof(SCROLLINFO);
    si.fMask=SIF_POS|SIF_RANGE|SIF_TRACKPOS;
    si.nMax=m_strList.GetCount()/(m_iRowX*m_iRowY ) ;
    si.nMin=0;
    si.nPos=0;
    si.nTrackPos=0;
    si.nPage=0;
    m_pScrollBar->SetScrollInfo(&si);

    m_dXSpace =(double)( (double)(m_rClient.Width() - 18 ) / (double)m_iRowX ) ;
    m_dYSpace =(double)( (double)m_rClient.Height() / (double)m_iRowY );

    CPaintDC dc(this);
    m_dcFont = new CDC() ;
    m_bmFont = new CBitmap() ;
    m_bmFont->CreateCompatibleBitmap(&dc,m_rClient.Width() - 18 , m_rClient.Height() ) ;
    m_dcFont->CreateCompatibleDC(&dc) ;
    m_dcFont->SelectObject(m_bmFont) ;
    InvalidateRect(&m_rClient);
}

BEGIN_MESSAGE_MAP(CStcImageFont, CStatic)
    ON_WM_PAINT()
    ON_WM_CREATE()
    ON_WM_VSCROLL()
    ON_WM_LBUTTONDBLCLK()
    ON_WM_NCHITTEST()
END_MESSAGE_MAP()

// CStcImageFont 消息处理程序

void CStcImageFont::OnPaint()
...{
    CPaintDC dc(this); // device context for painting
    CPen pen(PS_SOLID,1,RGB(0,0,0)) ;
    CPen *pOldPen = m_dcFont->SelectObject(&pen) ;
    //绘制字体
    m_dcFont->FillSolidRect(0,0,m_rClient.Width()-18 , m_rClient.Height() , RGB(255,255,255)) ;
    int i , j   ;
    for ( i = 0 ; i <= m_iRowX ; i++ )
    ...{
        m_dcFont->MoveTo(i*m_dXSpace , 0 ) ;
        m_dcFont->LineTo(i*m_dXSpace ,m_rClient.Height() ) ;
    }
    for ( j = 0 ; j < m_iRowY ; j++ )
    ...{
        m_dcFont->MoveTo(0 , j*m_dYSpace) ;
        m_dcFont->LineTo(m_rClient.Width()-18 ,j*m_dYSpace  ) ;
    }
    m_dcFont->SelectObject(pOldPen) ;

    for ( j = 0 ; j < m_iRowY ; j++ )
    ...{
        for ( i = 0 ; i < m_iRowX ; i++ )
        ...{
            RECT rc ;
            rc.left = m_rClient.left + m_dXSpace * i ;
            rc.top  = m_rClient.top  + m_dYSpace * j ;
            rc.right = rc.left + m_dXSpace ;
            rc.bottom = rc.top + m_dYSpace ;

            POSITION pos = m_strList.FindIndex(m_iCurPos*m_iRowX * m_iRowY + j*m_iRowX + i ) ;
            if ( pos != NULL )
            ...{
                m_dcFont->DrawText(m_strList.GetAt(pos) , &rc , DT_CENTER |DT_VCENTER | DT_SINGLELINE ) ;
            }
        }
    }

    dc.BitBlt(m_rClient.left,m_rClient.top ,m_rClient.Width()-18 ,m_rClient.Height() ,m_dcFont,0,0,SRCCOPY ) ;

}

int CStcImageFont::OnCreate(LPCREATESTRUCT lpCreateStruct)
...{
    if (CStatic::OnCreate(lpCreateStruct) == -1)
        return -1;
    // TODO:  在此添加您专用的创建代码
    return 0;
}

void CStcImageFont::OnVScroll(UINT nSBCode, UINT nPos, CScrollBar* pScrollBar)
...{
    // TODO: 在此添加消息处理程序代码和/或调用默认值
    int pos=m_pScrollBar->GetScrollPos();
    switch(nSBCode)
    ...{
    case SB_LINEDOWN :    pos+=1;        break;
    case SB_LINEUP :    pos-=1;        break;
    case SB_PAGEUP:        pos -= 1 ;    break ;
    case SB_PAGEDOWN:    pos += 1 ;    break ;
    case SB_THUMBTRACK : pos=nPos;    break;
    default : break;
    }
    m_pScrollBar->SetScrollPos(pos);
    m_iCurPos=m_pScrollBar->GetScrollPos();
    InvalidateRect(&m_rClient);
    CStatic::OnVScroll(nSBCode, nPos, pScrollBar);
}

void CStcImageFont::OnLButtonDblClk(UINT nFlags, CPoint point)
...{
    // TODO: 在此添加消息处理程序代码和/或调用默认值
    int i , j  ;
    int xIndex =-1 ;
    int yIndex =-1 ;

    for ( j = 0 ; j < m_iRowY ; j++ )
    ...{
        for ( i = 0 ; i < m_iRowX ; i++ )
        ...{
            RECT rc ;
            rc.left = m_rClient.left + m_dXSpace * i ;
            rc.top  = m_rClient.top  + m_dYSpace * j ;
            rc.right = rc.left + m_dXSpace ;
            rc.bottom = rc.top + m_dYSpace ;

            if ( ::PtInRect(&rc,point) )
            ...{
                xIndex = i ;
                yIndex = j ;
            }
        }
        if ( xIndex != -1 && yIndex !=-1 ) break ;
    }

    POSITION pos = m_strList.FindIndex(m_iCurPos*m_iRowX * m_iRowY + yIndex*m_iRowX + xIndex ) ;
    if ( pos != NULL )
    ...{
        m_strSelText = m_strList.GetAt(pos) ;
    }
    CStatic::OnLButtonDblClk(nFlags, point);
}
CString CStcImageFont::GetSelText()
...{
    return m_strSelText ;
}
UINT CStcImageFont::OnNcHitTest(CPoint point)
...{
    // TODO: 在此添加消息处理程序代码和/或调用默认值

    return HTCLIENT ;
}
